XINSHUN 800mm SJ-55 Film Blowing Machine

FOB Reference Price:Get Latest Price
US $5,000-10,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Film
Plastic Processed:
PE
Blow Moulding Type:
Extrusion Blow Moulding
Automatic:
Yes
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Xinshun
Model Number:
SJ-H
Voltage:
380V/50HZ
Weight:
2000kg
Certification:
ISO9001
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Material:
PE
Supply Ability
Supply Ability:
25 Set/Sets per Month
Packaging & Delivery
Packaging Details

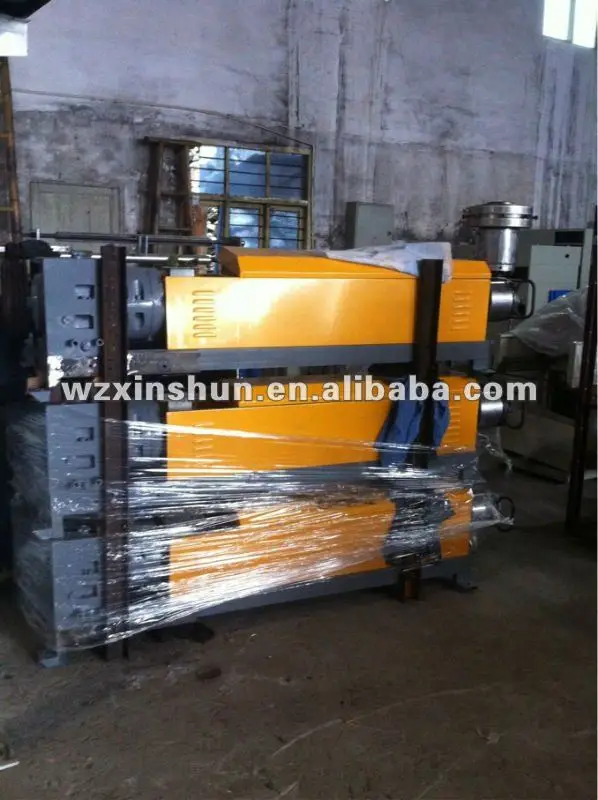

Film Blowing Machine is usually First Packed by stretch film or wooden box.
Port
Ningbo
Lead Time :
in 20days
Video Description

XINSHUN 800mm SJ-55 Film Blowing Machine

 .png





11QQ20120203163244DSC02959





Performance and Characteristics:

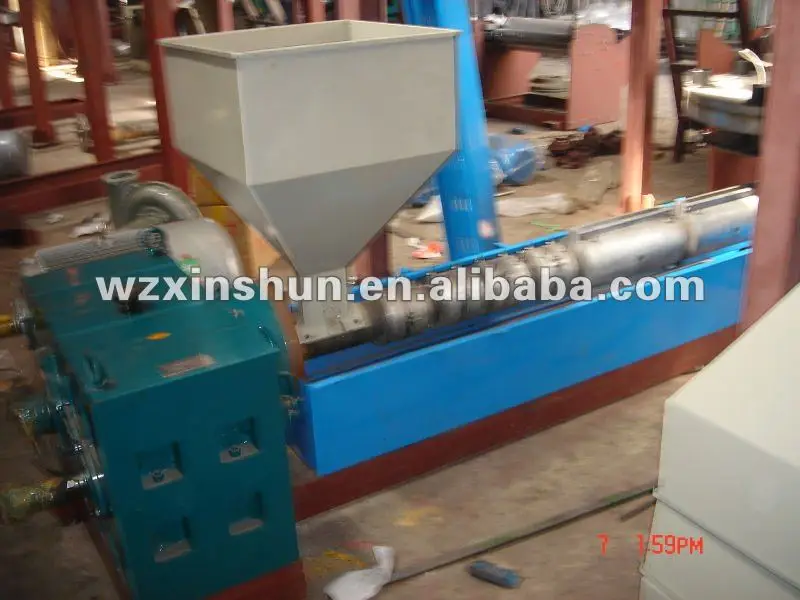

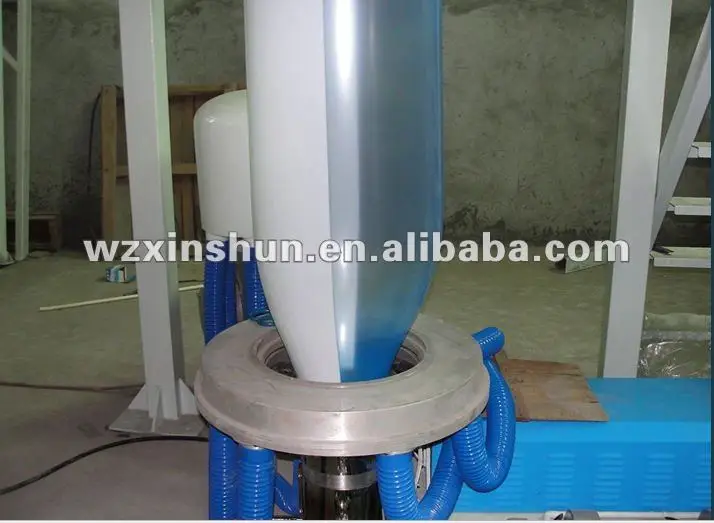

It is used for blowing various plastic film of low density polyethylene(LDPE),high density polyene(HDPE)and linear low density polyethylene(LLDPE)etc.,Which are widely used for packing liquid,industrial products,garments and textile and printing lamination.etc..The cylinder and the screw stems of the extruder are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after nitroqen trea-tment and precision finishing.
    The auxiliary machine has a platform working table formaking operation easy and is equipped with dubble stabilizing ring.Double-rolling and double-cutting coiling unit adoptstorque motor to keep proper tension and make even and roll-changing easy.
Main Teachnical Variables:
Model
H50H55H65H70
Diameter of screw
50556570
Reduced diameter of film(mm)
100-600
200-800
300-1000
400-1200
Single-face Thickness of felm(mm)
0.008-0.060.008-0.060.008-0.060.008-0.06
Max.output(kg/h)
25-3035-4060-6565-70
L/D
261261261261
Power of main motor(kw)
111518.522
Power of Traction motor(kw)
1.11.11.51.5
Heating Power(kw)
13152123
Outline diameter(L×W×H)(mm)
5500×2000×42005800×2200×45006300×2500×52006800×7800×6300
Weight(T)
1.51.82.22.5





Video link http://v.youku.com/v_show/id_XNDAwMjc5NzMy.html

OPTIONAL EQUIPMENT:
1)AUTO LOAD
2)AIR COMPRESSOR
3)SPECIAL DIE
4)DIE ROTARY DEVICE
5)BOUBLE SIDES WINDER
6) UP AND DOWN









Contact Us:







Miss. Shelly Zhou



(Sales Manager)



Skype: xinshun168



WhatsApp:15258655090



Wechat:15258655090



QQ: 896848587



Website:www.xinshunmachine.com







Our Products Advantages:



 1) Good quality



 2) Competitive price



 3) Satisfying service



 4) Delivery timely



 The Payment Term:



 1) T/T: 30% TT as deposit, 70% TT before shipment.



 2) West Union



 3) Moneygram



Any Requirements, Please Feel Free To Contact with Us, Thank You.
