XINSHUN Supply SJ Series Mini Pe Film Blowing Machine

FOB Reference Price:Get Latest Price
1 Set/Sets as you request (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Film
Plastic Processed:
PE
Blow Moulding Type:
Extrusion Blow Moulding
Automatic:
Yes
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
XinShun
Model Number:
SJ-50
Voltage:
380V or according to the customer's demand
Warranty:
1Year
Supply Ability
Supply Ability:
100 Set/Sets per Month as you request
Packaging & Delivery
Packaging Details
by simple packing or wooden case packing
Port
NINGBO
Lead Time :
in 20days

Specifications

plastic mini film blowing machine
1.material:HDPE, LDPE, LLDPE.
2.width:500mm
3.output:25-30kgs/h
4.screw diameter:45m



                                  SJ-M Model Mini Film Blowing Machine

Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrizied and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polythene(LDPE),high density polythene(HDPE)and linear low density polythene(LLDPE).It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones

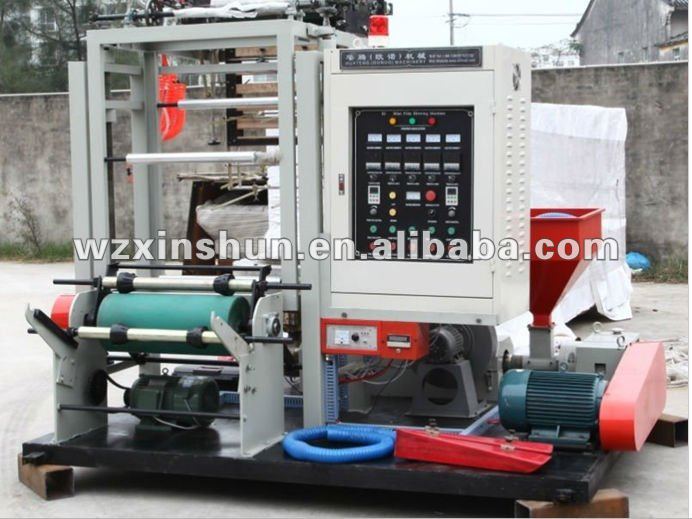

film blowing machine.JPG




1



QQ20120228183500



Optional Equipment

1)AUTO LOADER   2) CAST ALUM HEATER     3)AIR SHAFT   4)PNEUMATIC DEVICE

Main Technical Parameters

Haul-off motor Power (kw)

1.1KW

Heating

13KW

Main power

7.5kw

Die-Head

Free with two size

Screw Diameter

Φ45 mm

Screw L/D Ratio

L/D 28:1

Screw Speed

10-100r/min

Max Output

25kgs/h

Film Thickness

0.008-0.10 mm

Film Width

500 mm

Overall diameter(LxWxH)(mm)

2300x1400x2200

Weight

1.4T



Pls check the video

http://v.youku.com/v_show/id_XNTQwNzI2NDc2.html




If you have any question ,pls contact me !

I am waiting for your email and calling at any time.
