Xinshun Brand High Speed Flexible Packaging Printing Machine

FOB Reference Price:Get Latest Price
US $5,000-30,000 / Sets | 1 Set/Sets as you request (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Flexographic Printer
Condition:
New
Plate Type:
Letterpress
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Xinshun
Model Number:
YT-6600/6800/61000
Usage:
Letter press Machine
Automatic Grade:
Automatic
Color & Page:
six colors
Gross Power:
5kw
Dimensions(L*W*H):
4200*1800*2400mm
Weight:
5000kg
Certification:
CE ISO
Printing length:
180-990mm
Printing speed:
50m/min
Plate thickness:
2.38mm
Printing width1:
600 mm
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
20 Set/Sets per Month as you request
Packaging & Delivery
Packaging Details
in wooden case or bulk packing
Port
ningbo
Lead Time :
25 days after we receive the deposit

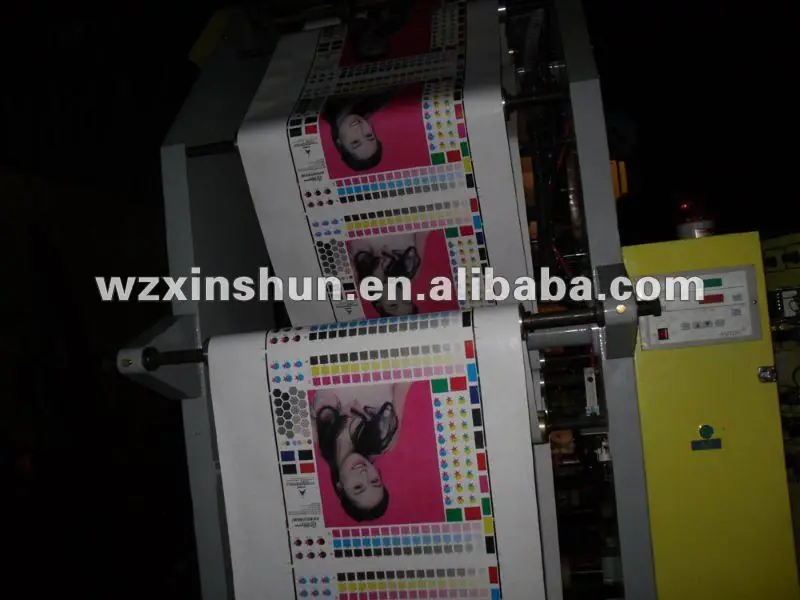

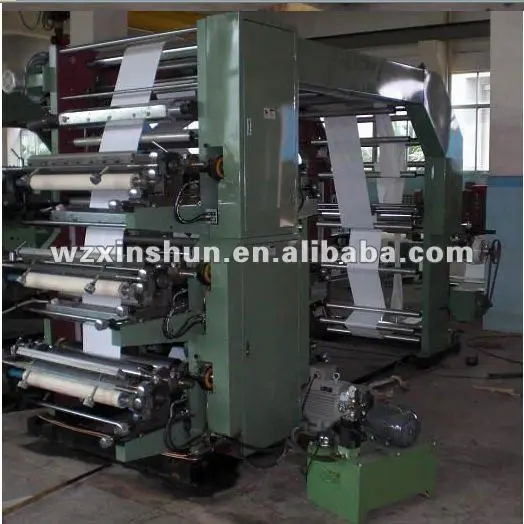

                                               Six Colors Flexo Printing Machine

Flexo Printing Machine is suitable for printing packing materials such as polyethylene, polypropylene, glass paper and paper.

Usage

YT-6600/6800/61000 Letterpress Flexo Printing Machine is suitable for printing such packing materials as polyethylene, polypropylene, glass paper and roll paper, etc. And YT-6600/6800/61000  Letterpress Flexo Printing Machine is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

company-zhuxin.jpg20111120.JPG..6-Color-High-Speed-Stack-Flexographic-Printing-Machine-CE-HTY-6600-HTY-62000-CE-.jpgQQ20120103133259.jpg



YT-6600/6800/61000  Letterpress Flexo Printing Machine can be linked with LMD-400 Paper Bag Making Machine.

--------------------------------------------------------------------

Characteristics

  1. Easy operation, flexible starting, accurate color register
  2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the set quantity or when the material is cut off
  3. Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting
  4. The printing ink is spread by the knurled cylinder with even ink color
  5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops
  6. 360°continuous and adjustable longitudinal register device
  7. The imported frequency control of motor speed adapts to different printing speeds
  8. There are inching/stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed

--------------------------------------------------------------------

Main Technical Parameter

Main technical variables:

Type

XSYT-6600

XSYT-6800

XSYT-61000

Max. Effective Printing Width

560mm

760mm

960mm

Max. Web Width

600mm

800mm

1000mm

Max. Printing Speed

50m/min

50m/min

50m/min

Max. Mechanical Speed

60 m/min

60 m/min

60 m/min

Max. Diameter of Roll Material

450mm

450mm

450mm

Internal Diameter of Roll Core

76mm

76mm

76mm

Rang of Repeat Printing Length

191-914mm

191-914mm

191-914mm

Accuracy of Registration

±0.5mm

±0.5mm

±0.5mm

Plate Thickness(Both side adhesive included)

2.38mm

2.38mm

2.38mm

Heating Power

9Kw

13.5Kw

18Kw

Total Power

15Kw

19.5Kw

24Kw

Weight of Machine

3500kg

4200kg

5000kg

Overall Dimension

4300×1700×2950mm

4300×1900×2950mm

4300×2100×2950mm

Data are subject to change without prior notice.
