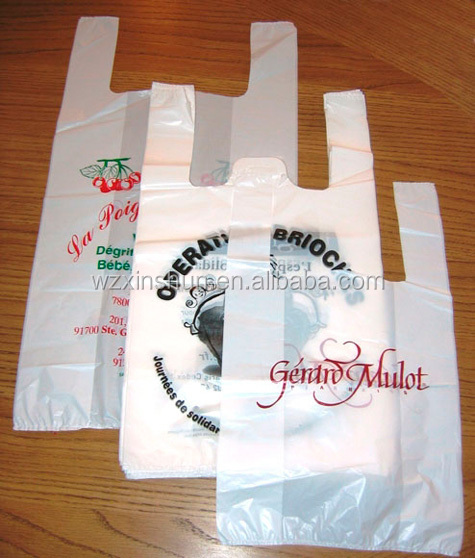

These machine is suitable for making high-low pressure vest bags (supermarket hand bags),handbags(for clothes and shoes),disposable medical packing bags and bags for sanitary napkins.
Performance and Characteristics:

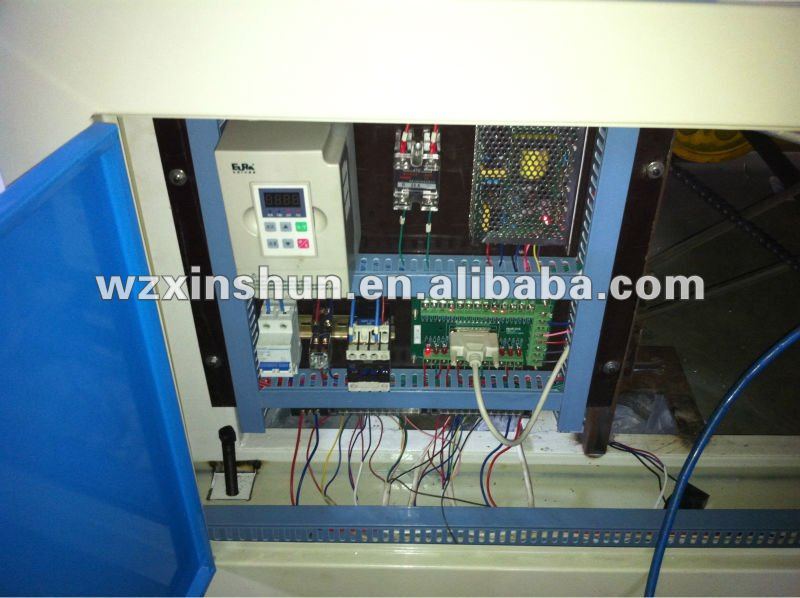

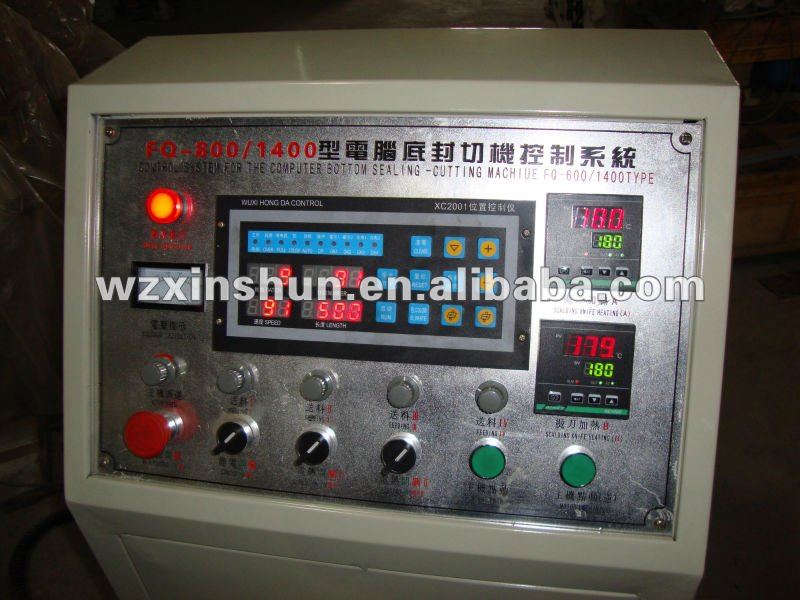

1.The whole machine adopts microcomputer control and material-pulling by stepping motor(Servomotor control system can also be selected and equipped).
2.Arbitrary fixed-length,accurate and stable step photoelectric tracking stopping automatically when the label is lost,photoelectriccontrol feeding.
3.Automatic counting and set able counting alarm.
4.Automatic constant temperature makes the sealing of bag opening firm and smooth.
5.Non-printing material can make bags in duoble lines by 4rolls feeding,making 4bas in one time.
Material processed:
HDPE/LDPE/LLDPE (as per the quality and usage of the film)
Main technical varialbles:
Model of machine
SHXJ-B600
SHXJ-B700
SHXJ-B800
SHXJ-B900
Max.bag-making width
500mm
600mm
700mm
800mm
Max.cutting legth
1200mm
1200mm
1200mm
1200mm
Raw material
HDPE LDPE LLDPE
Production capacity
30-180pcs/min 1line
60-360pcs/min 2lines
90-540pcs/min 3lines
120-720pcs/min 4lines
Total power
4kw
4.2kw
4.5kw
5kw
Weight of machine
800kg
850kg
900kg
950kg
Overall size(L×W×H)
3300×940×1600
3300×1040×1600
3300×1140×1600
3300×1240×1600
4lines cold cutting bag making machine video link: http://v.youku.com/v_show/id_XNDQ3NjEyNzQ0.html
4lines cold cutting bag making machine (with conveyor)video link:
http://v.youku.com/v_show/id_XNDQ3NTc4MTg4.html
4lines cold cutting bag making machine (with punch)video link:
http://v.youku.com/v_show/id_XNDMwNTY4MDY0.html
